Block side feeder, central feeding system

Block side feeder, central feeding system

积木式侧喂料机

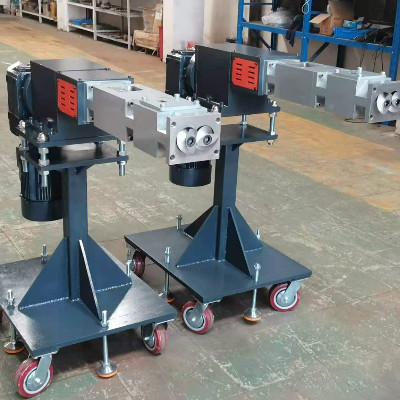

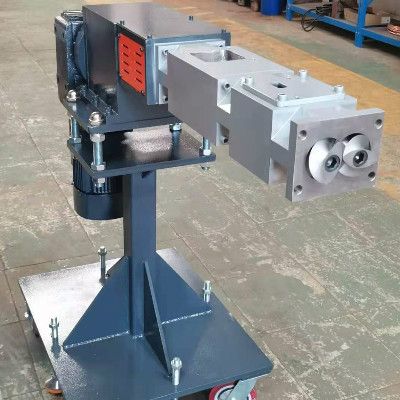

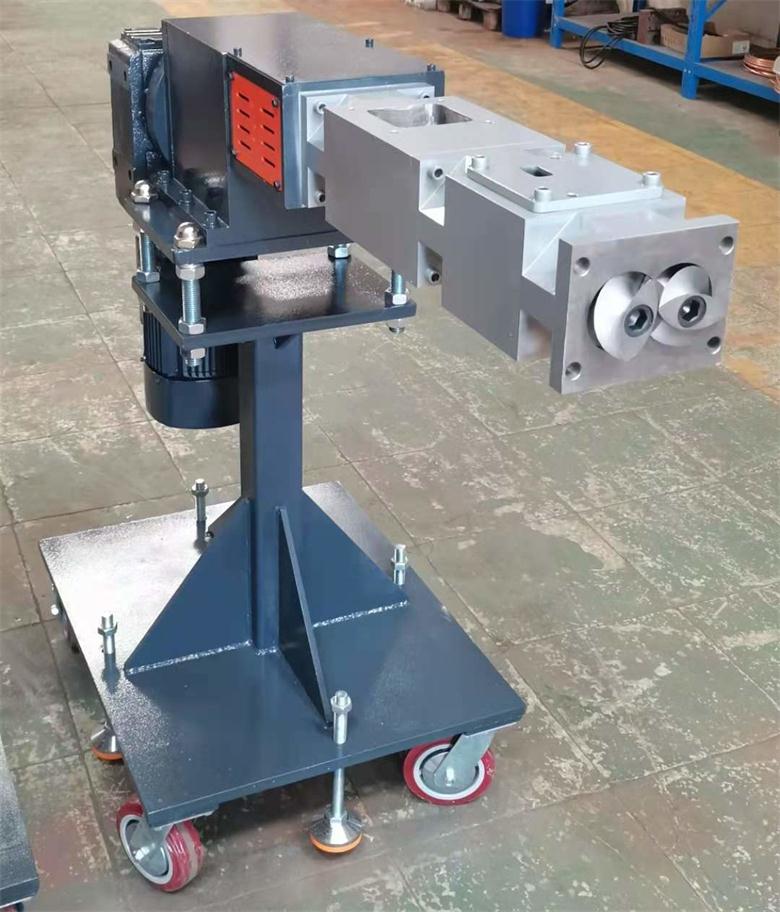

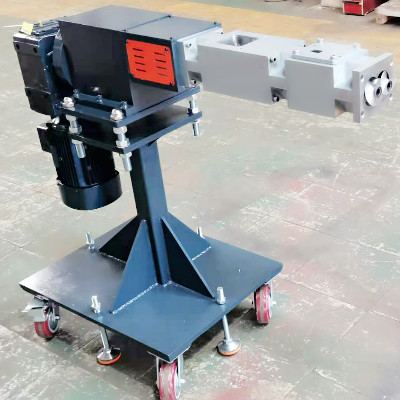

Building block side feeder chuangshuo plastic machinery

The main engine is designed based on the principle of building blocks. Its screw configuration, barrel structure, length diameter ratio, blanking and extrusion are optimized. The design is combined with the German design structure. The basic screw element is a conveying element, which is precisely designed by computer, with excellent self-cleaning and arbitrary interchangeability. With the help of more than ten years of screw configuration research and design experience and software technology, it can realize the functions of material transportation, pressure building and extrusion and various filling functions, such as short glass fiber copolymerization, powdery combustion resistance, talcum powder calcium carbonate filling, etc Energy efficient work.

The screw elements of the main engine have been connected by involute spline which is synchronized with the international level, which makes full use of the deep groove structure with limited structural space, and realizes high torque operation and larger screw working volume. The new type of torque distribution transmission device strengthens the design safety, high-precision hard tooth surface grinding processing, and the bearings are all imported bearings, in pursuit of higher reliability. With low vibration and low noise, the whole machine can be installed without foundation and placed on the flat ground, which reduces the site and installation requirements and is more convenient to use.
